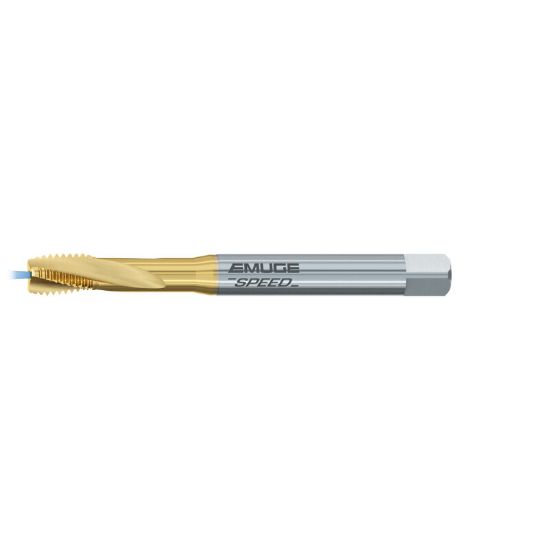

EMUGE BU293701.5044 Tap 5/16-24.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P Coolant Cobalt HSSE TiN

ISO: BU293701.5044

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU293701.5044
Delivery date: 3-5 days
$94.61

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Made In USA No
Application Mod Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Coating TiN
Dimensional Specifications
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Flute Direction R - Right
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Thread Size 5/16"
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Overall Len 3.5430 89.99MM
Length Type Standard
Thread Limit 2B
Tap Square 0.2380
Thread Type NF/UNF/UNEF
Thread Pitch 24.00TPI
Flutes/Inserts 3
Drill Range 0.2689 6.83MM - 0.2799 7.11MM
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
