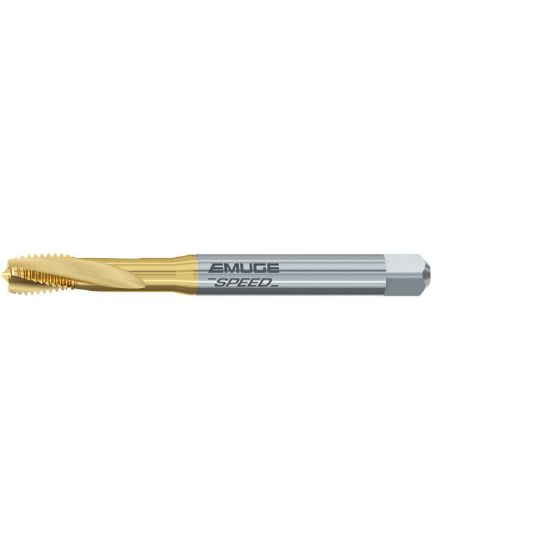

EMUGE BU263701.5045 Tap 3/8-24.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P Carbide HSSE TiN

ISO: BU263701.5045

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU263701.5045
Delivery date: 3-5 days
$76.79

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Coating TiN
Application Mod Bottom Tapping, Tapping, Cut Tapping
Made In USA No
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Square 0.2860
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Limit 2B
Flute Direction R - Right
Overall Len 3.9370 100.00MM
Length Type Standard
Tool Material Steel
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Drill Range 0.3315 8.42MM - 0.3421 8.69MM
Flutes/Inserts 3
Thread Size 3/8"
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.3810 9.68MM
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
