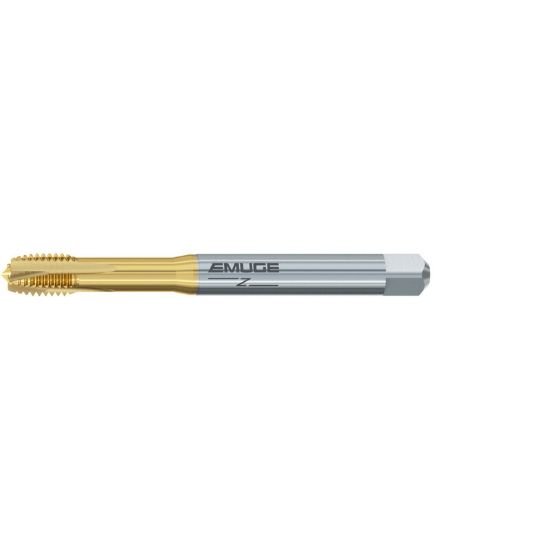

Picture of Emuge BU208F01.5045 Tap 3/8-24.00TPI Plug NF/UNF/UNEF DINSI 4P-5P Carbide HSSE-Powder Metal TiN

Emuge BU208F01.5045 Tap 3/8-24.00TPI Plug NF/UNF/UNEF DINSI 4P-5P Carbide HSSE-Powder Metal TiN

Part Number: EMUBU208F01.5045 ISO: BU208F01.5045

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158314
Vendor: Sussex Tool and Supply
$68.46
EMUGE BU208F01.5045 3/8"x24.00TPI Cut Spiral Point Plug 4P-5P HSSE-PM TiN 2B NF/UNF/UNEF Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TIN
Overall Length 3.9370 100.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Flute Direction STRAIGHT
Thread Size 3/8"
Thread Limit 2B
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard DINSI
Tap Drill Range 0.3315 8.42MM - 0.3421 8.69MM
Tap Square 0.2860
Tap Chamfer 4P-5P
