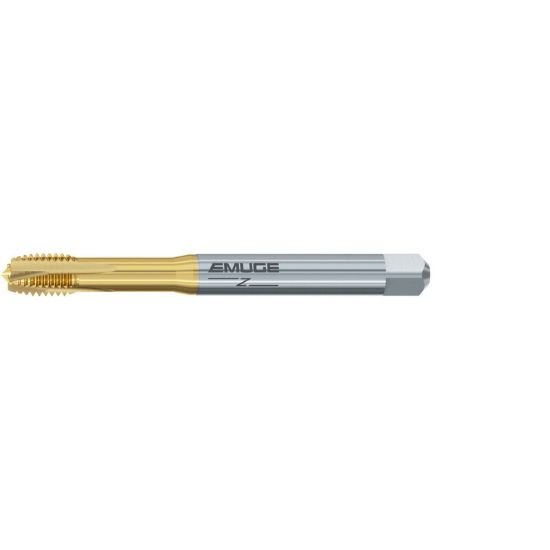

Picture of Emuge BU208F01.5011 Tap 3/8-16.00TPI Plug NC/UNC DINSI 4P-5P Carbide HSSE-Powder Metal TiN

Emuge BU208F01.5011 Tap 3/8-16.00TPI Plug NC/UNC DINSI 4P-5P Carbide HSSE-Powder Metal TiN

Part Number: EMUBU208F01.5011 ISO: BU208F01.5011

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158310
Vendor: Sussex Tool and Supply
$66.41
EMUGE BU208F01.5011 3/8"x16.00TPI Cut Spiral Point Plug 4P-5P HSSE-PM TiN 2B NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TIN
Overall Length 3.9370 100.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 16.00TPI
Thread Type NC/UNC
Flute Direction STRAIGHT
Thread Size 3/8"
Thread Limit 2B
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard DINSI
Tap Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Tap Square 0.2860
Tap Chamfer 4P-5P
