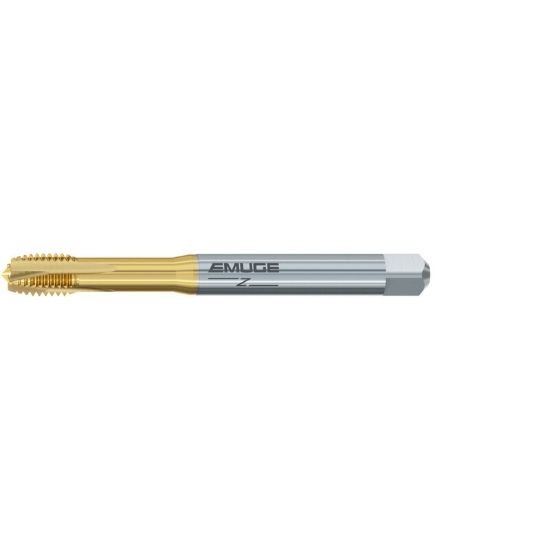

Picture of Emuge BU208F01.5003 Tap No.4-40.00TPI Plug NC/UNC DINSI 4P-5P Carbide HSSE-Powder Metal TiN

Emuge BU208F01.5003 Tap No.4-40.00TPI Plug NC/UNC DINSI 4P-5P Carbide HSSE-Powder Metal TiN

Part Number: EMUBU208F01.5003 ISO: BU208F01.5003

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158303
Vendor: Sussex Tool and Supply
$50.46
EMUGE BU208F01.5003 No.4x40.00TPI Cut Spiral Point Plug 4P-5P HSSE-PM TiN 2B NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TIN
Overall Length 2.2050 56.01MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 40.00TPI
Thread Type NC/UNC
Flute Direction STRAIGHT
Thread Size No.4
Thread Limit 2B
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard DINSI
Tap Drill Range 0.0860 2.18MM - 0.0925 2.35MM
Tap Square 0.1100
Tap Chamfer 4P-5P
