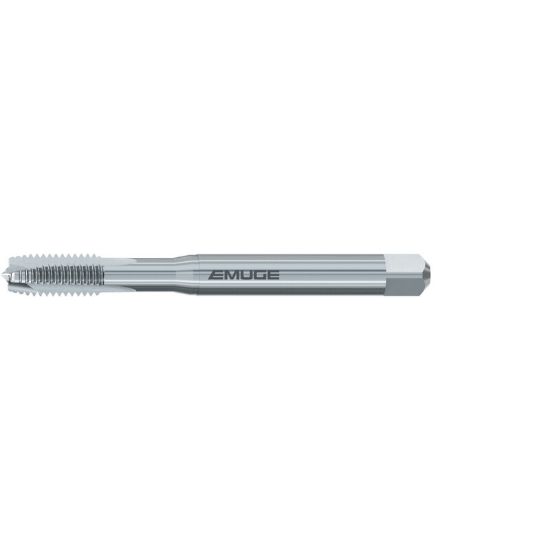

EMUGE BU206511.5043 Tap 1/4-28.00TPI Plug NF/UNF/UNEF DINSI 4P-5P HSSE Nitride

ISO: BU206511.5043

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU206511.5043
Delivery date: 3-5 days
$49.91

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Coating Nitride
Application Cut Tapping, Tapping, Plug Tapping, Through Hole Tapping
Performance Rating High Performance
Made In USA No
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Pitch 28.00TPI
Drill Range 0.2244 5.70MM - 0.2220 5.64MM
Tap Chamfer 4P-5P
Thread Type NF/UNF/UNEF
Flutes/Inserts 3
Thread Limit 3B
Cut Rating High Temp, Inconel, Titanium
Dimension Standard DINSI
Overall Len 3.1490 79.98MM
Length Type Standard
Tap Square 0.1910
Thread Size 1/4"
Flute Direction STRAIGHT
Shank/Pilot Dia 0.2550 6.48MM
Tap Type Plug
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
