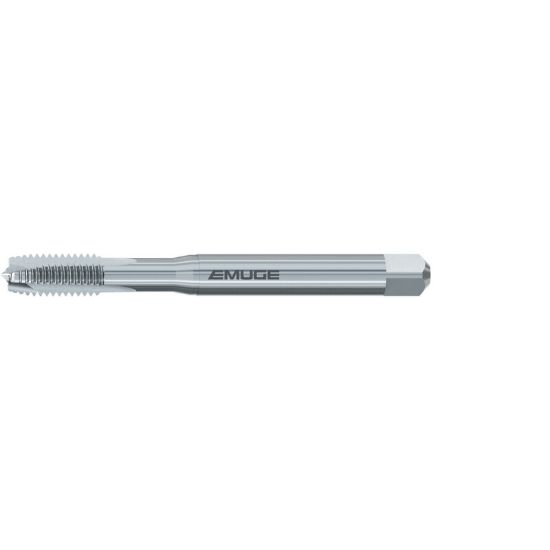

EMUGE BU206511.5007 Tap Plug No.10-24.00TPI 3B NC/UNC DINSI HSSE Nitride

ISO: BU206511.5007

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU206511.5007
Delivery date: 3-5 days
$43.80

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Coating Nitride
Made In USA No
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Thread Limit 3B
Cut Rating High Temp, Inconel, Titanium
Flute Direction STRAIGHT
Overall Len 2.7560 70.00MM
Tap Square 0.1520
Tap Type Plug
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Tap Chamfer 4P-5P
Tool Material Steel
Length Type Standard
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Thread Type NC/UNC
Dimension Standard DINSI
Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Thread Pitch 24.00TPI
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
