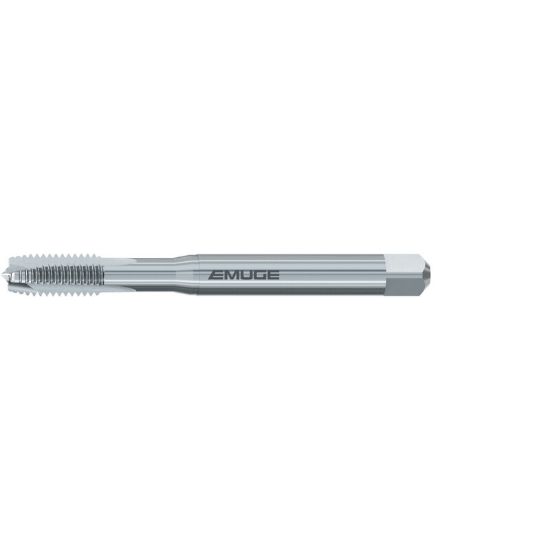

EMUGE BU206511.5005 Tap Plug No.6-32.00TPI 3B NC/UNC DINSI HSSE Nitride

ISO: BU206511.5005

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU206511.5005
Delivery date: 3-5 days
$44.18

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Coating Nitride
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Type NC/UNC
Dimension Standard DINSI
Length Type Standard
Flute Direction STRAIGHT
Shank/Pilot Dia 0.1410 3.58MM
Tap Style Cut Spiral Point
Machine Side Connection Type Tap Collet
Thread Size No.6
Flutes/Inserts 3
Drill Range 0.1051 2.67MM - 0.1134 2.88MM
Tool Material Steel
Tap Square 0.1100
Tap Chamfer 4P-5P
Thread Pitch 32.00TPI
Thread Limit 3B
Cut Rating High Temp, Inconel, Titanium
Overall Len 2.2050 56.01MM
Tap Type Plug
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
