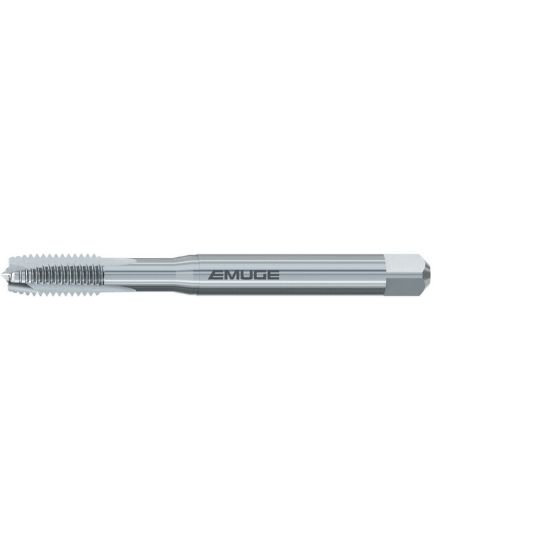

Picture of Emuge BU206511.5039 Tap Plug No.6-40 TPI 3B NF/UNF/UNEF DINSI HSSE Nitride

Emuge BU206511.5039 Tap Plug No.6-40 TPI 3B NF/UNF/UNEF DINSI HSSE Nitride

Part Number: EMUBU206511.5039 ISO: BU206511.5039
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$53.92
SKU: 1155887

Description

EMUGE BU206511.5039 No.6x40 TPI Cut Spiral Point Plug 4P-5P HSSE Nitride 3B NF/UNF/UNEF
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction STRAIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4P-5P
Dimensions & Sizing
Overall Length 2.2050 56.01MM
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 3
Thread Pitch 40.00TPI
Thread Size No.6
Tap Drill Range 0.1118 2.84MM - 0.1181 3.00MM
Tap Square 0.1100
Performance & Capacity
Cut Rating High Temp, Inconel, Titanium
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 3B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating Nitride
Standards & Identification
Dimension Standard DINSI
