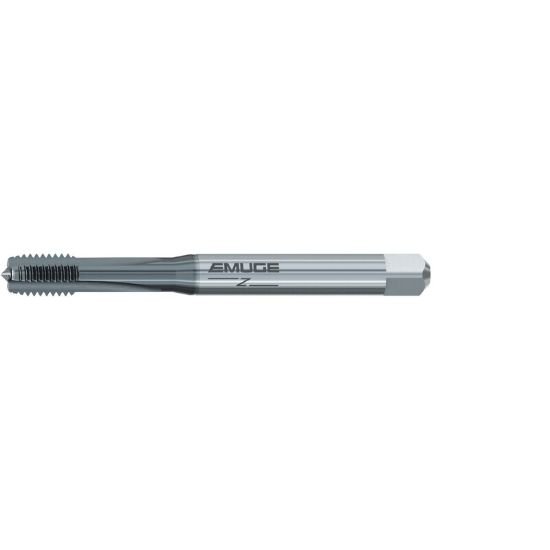

Picture of Emuge BU109401.5009 Tap 1/4-20 TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE TiCN

Emuge BU109401.5009 Tap 1/4-20 TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE TiCN

Part Number: EMUBU109401.5009 ISO: BU109401.5009
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$56.33
SKU: 1159123

Description

EMUGE BU109401.5009 1/4"x20 TPI Cut Straight Flute Mod Bottom 2.0P-3.0P HSSE TiCN 2B NC/UNC
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction STRAIGHT
Tap Style Cut Straight Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 3.1490 79.98MM
Shank/Pilot Dia 0.2550 6.48MM
Flutes/Inserts 3
Thread Pitch 20.00TPI
Thread Size 1/4"
Tap Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tap Square 0.1910
Performance & Capacity
Cut Rating Stainless Steel, <42HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 2B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating TICN
Standards & Identification
Dimension Standard DINSI
