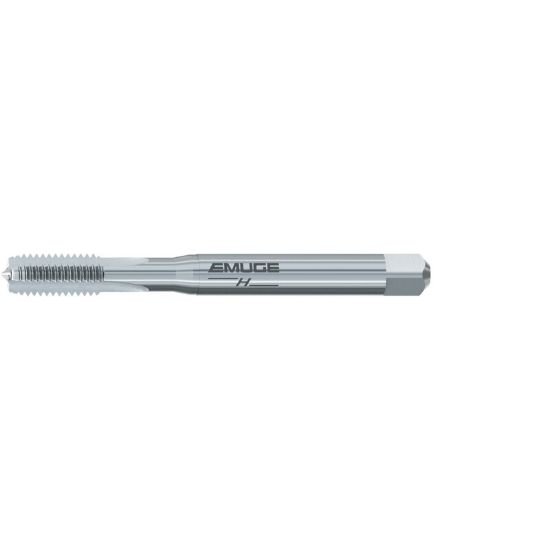

Emuge BU100501.5011 Tap 3/8-16.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Carbide HSSE Nitride

Part Number: EMUBU100501.5011 ISO: BU100501.5011

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1155714
$48.21
EMUGE BU100501.5011 3/8"x16.00TPI Cut Straight Flute Mod Bottom 2.0P-3.0P HSSE Nitride 2B NC/UNC Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating High Temp, Inconel, Titanium
Coating Nitride
Overall Length 3.9370 100.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 16.00TPI
Thread Type NC/UNC
Flute Direction STRAIGHT
Thread Size 3/8"
Thread Limit 2B
Tap Style Cut Straight Flute
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Tap Square 0.2860
Tap Chamfer 2.0P-3.0P
