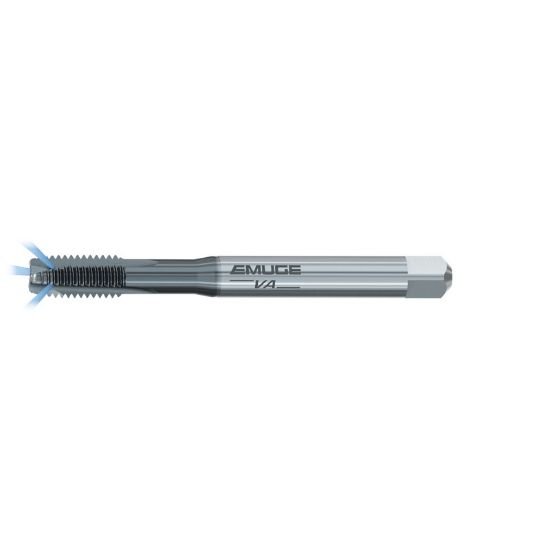

Picture of Emuge BU089300.5045 Tap 3/8-24.00TPI Plug NF/UNF/UNEF DINSI 4P-5P Coolant Carbide HSSE TiCN

Emuge BU089300.5045 Tap 3/8-24.00TPI Plug NF/UNF/UNEF DINSI 4P-5P Coolant Carbide HSSE TiCN

Part Number: EMUBU089300.5045 ISO: BU089300.5045
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1156165
Vendor: Sussex Tool and Supply
$168.33

Description

EMUGE BU089300.5045 3/8"x24.00TPI Cut Spiral Point Plug 4P-5P HSSE TiCN 2B NF/UNF/UNEF Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction STRAIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4P-5P
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 4
Thread Pitch 24.00TPI
Thread Size 3/8"
Tap Drill Range 0.3315 8.42MM - 0.3421 8.69MM
Tap Square 0.2860
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 2B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating TICN
Standards & Identification
Dimension Standard DINSI
