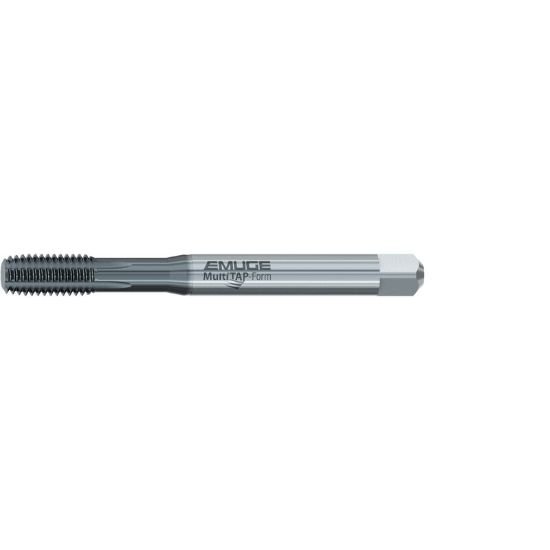

Picture of Emuge B5999000.0060 Tap M6-1.00mm Bottoming Metric DIN/DIn 1.5P-2.0P HSSE TiCN

Emuge B5999000.0060 Tap M6-1.00mm Bottoming Metric DIN/DIn 1.5P-2.0P HSSE TiCN

Part Number: EMUB5999000.0060 ISO: B5999000.0060

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157715
Vendor: Sussex Tool and Supply
$31.05
EMUGE B5999000.0060 M6x1.00MM Roll Form Bottoming 1.5P-2.0P HSSE TiCN 6H Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating <40HRC Steel
Coating TICN
Overall Length 3.1496 80.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2360 5.99MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.00MM
Thread Type METRIC
Flute Direction STRAIGHT
Thread Size M6
Thread Limit 6H
Tap Style Roll Form
Tap Type Bottoming
Dimension Standard DIN/DIN
Tap Drill Range 0.2161 5.49MM - 0.2217 5.63MM
Tap Square 0.1910
Tap Chamfer 1.5P-2.0P
