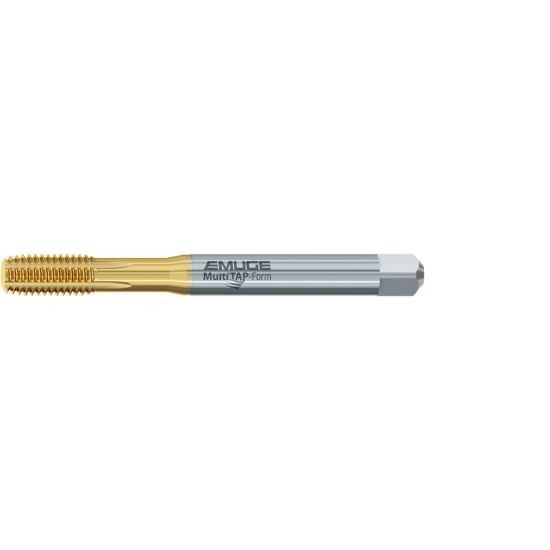

EMUGE B5991400.0050 Tap M5-0.80MM Bottoming Metric DIN/DIN 1.5P-2.0P HSSE TiN

ISO: B5991400.0050

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB5991400.0050
Delivery date: 3-5 days
$25.62

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Shipping State Massachusetts
Package Size 1
Application Bottom Tapping, Tapping, Roll Form Tapping, Blind Hole Tapping
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Machine Side Connection Type Tap Collet
Thread Limit 6H
Cut Rating <40HRC Steel
Shank/Pilot Dia 0.2360 5.99MM
Tap Chamfer 1.5P-2.0P
Tap Square 0.1920
Tap Style Roll Form
Thread Size M5
Dimension Standard DIN/DIN
Length Type Standard
Tap Type Bottoming
Tool Material Steel
Drill Range 0.1807 4.59MM - 0.1850 4.70MM
Thread Pitch 0.80MM
Thread Type Metric
Flute Direction STRAIGHT
Overall Len 2.7560 70.00MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
