  • EMUGE B5991400.0020 Tap M2-0.40MM Bottoming Metric DIN/DIN 1.5P-2.0P HSSE TiN

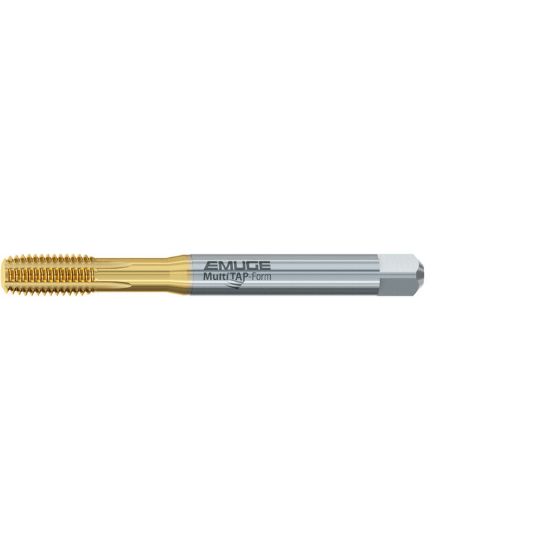

Picture of EMUGE B5991400.0020 Tap M2-0.40MM Bottoming Metric DIN/DIN 1.5P-2.0P HSSE TiN

EMUGE B5991400.0020 Tap M2-0.40MM Bottoming Metric DIN/DIN 1.5P-2.0P HSSE TiN

ISO: B5991400.0020

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB5991400.0020
Delivery date: 3-5 days
$40.08

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Bottom Tapping, Tapping, Roll Form Tapping
Performance Rating High Performance
Coating TiN
Shipping State Massachusetts
Package Size 1
Made In USA No
Dimensional Specifications
Thread Pitch 0.40MM
Thread Type Metric
Dimension Standard DIN/DIN
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1102 2.80MM
Drill Range 0.0709 1.80MM - 0.0728 1.85MM
Tap Chamfer 1.5P-2.0P
Thread Limit 6H
Tap Style Roll Form
Thread Size M2
Tool Material Steel
Length Type Standard
Tap Type Bottoming
Flute Direction STRAIGHT
Overall Len 1.7717 45.00MM
Tap Square 0.0820
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
