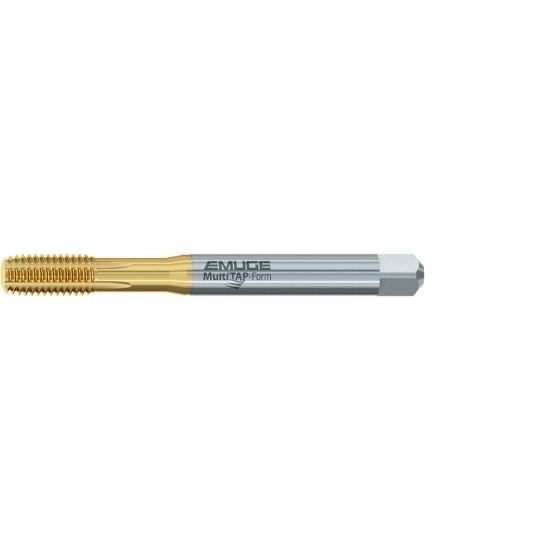

Picture of Emuge B5991400.0040 Tap M4-0.70mm Bottoming Metric DIN/DIn 1.5P-2.0P HSSE TiN

Emuge B5991400.0040 Tap M4-0.70mm Bottoming Metric DIN/DIn 1.5P-2.0P HSSE TiN

Part Number: EMUB5991400.0040 ISO: B5991400.0040

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157720
Vendor: Sussex Tool and Supply
$26.08
EMUGE B5991400.0040 M4x0.70MM Roll Form Bottoming 1.5P-2.0P HSSE TiN 6H Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating <40HRC Steel
Coating TIN
Overall Length 2.4803 63.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1770 4.50MM - #16
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 0.70MM
Thread Type METRIC
Flute Direction STRAIGHT
Thread Size M4
Thread Limit 6H
Tap Style Roll Form
Tap Type Bottoming
Dimension Standard DIN/DIN
Tap Drill Range 0.1433 3.64MM - 0.1472 3.74MM
Tap Square 0.1920
Tap Chamfer 1.5P-2.0P
