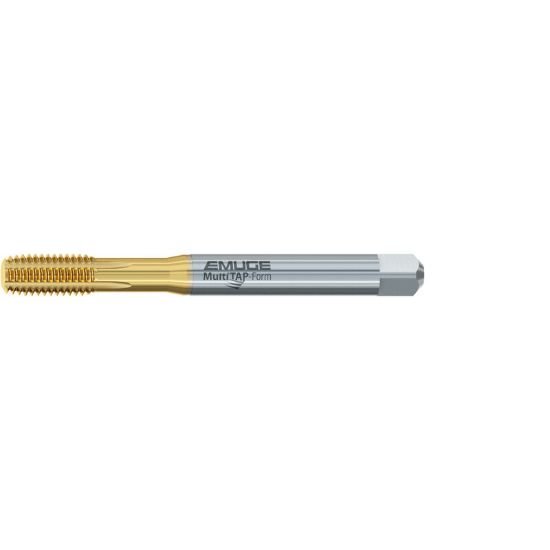

Picture of Emuge B5991400.0030 Tap M3-0.50mm Bottoming Metric DIN/DIn 1.5P-2.0P HSSE TiN

Emuge B5991400.0030 Tap M3-0.50mm Bottoming Metric DIN/DIn 1.5P-2.0P HSSE TiN

Part Number: EMUB5991400.0030 ISO: B5991400.0030

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157719
Vendor: Sussex Tool and Supply
$26.08
EMUGE B5991400.0030 M3x0.50MM Roll Form Bottoming 1.5P-2.0P HSSE TiN 6H Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating <40HRC Steel
Coating TIN
Overall Length 2.2047 56.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1370 3.48MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 0.50MM
Thread Type METRIC
Flute Direction STRAIGHT
Thread Size M3
Thread Limit 6H
Tap Style Roll Form
Tap Type Bottoming
Dimension Standard DIN/DIN
Tap Drill Range 0.0976 2.48MM - 0.1028 2.61MM
Tap Square 0.1060
Tap Chamfer 1.5P-2.0P
