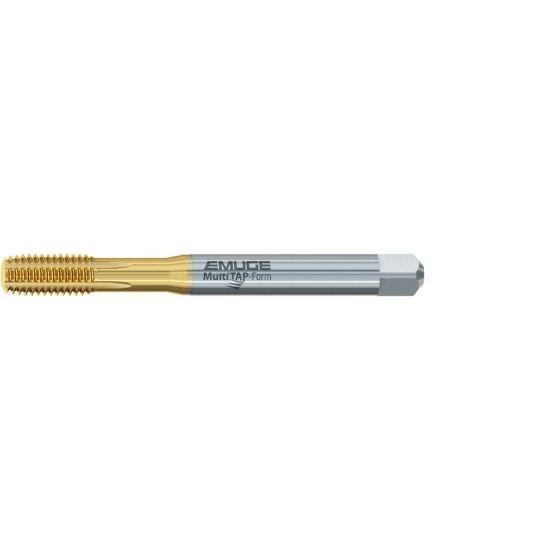

Picture of Emuge B5991400.0020 Tap M2-0.40mm Bottoming Metric DIN/DIn 1.5P-2.0P HSSE TiN

Emuge B5991400.0020 Tap M2-0.40mm Bottoming Metric DIN/DIn 1.5P-2.0P HSSE TiN

Part Number: EMUB5991400.0020 ISO: B5991400.0020

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157718
Vendor: Sussex Tool and Supply
$40.79
EMUGE B5991400.0020 M2x0.40MM Roll Form Bottoming 1.5P-2.0P HSSE TiN 6H Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating <40HRC Steel
Coating TIN
Overall Length 1.7717 45.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1102 2.80MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 0.40MM
Thread Type METRIC
Flute Direction STRAIGHT
Thread Size M2
Thread Limit 6H
Tap Style Roll Form
Tap Type Bottoming
Dimension Standard DIN/DIN
Tap Drill Range 0.0709 1.80MM - 0.0728 1.85MM
Tap Square 0.0820
Tap Chamfer 1.5P-2.0P
