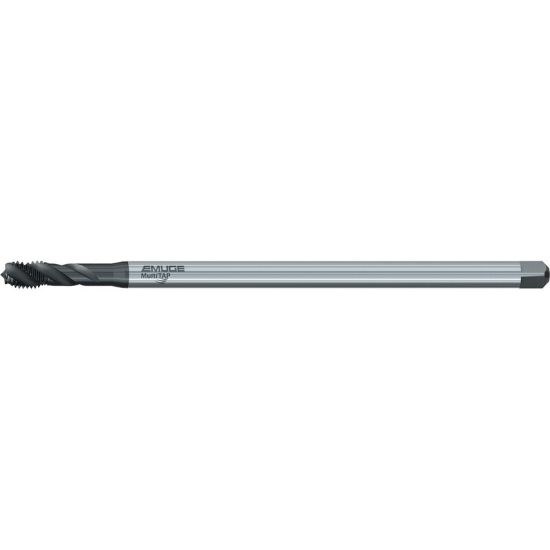

EMUGE B5863200.0080 Tap Mod Bottom M8-1.25MM 6H Metric DIN/DIN HSSE Oxide + TiN

ISO: B5863200.0080

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB5863200.0080
Delivery date: 3-5 days
$135.12

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Made In USA No
Application Mod Bottom Tapping, Tapping, Cut Tapping
Performance Rating High Performance
Coating Oxide + TiN
Dimensional Specifications
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Length Type Long
Tap Chamfer 2.0P-3.0P
Flute Direction R - Right
Thread Size M8
Thread Type Metric
Tap Square 0.2380
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Thread Pitch 1.25MM
Tool Material Steel
Shank/Pilot Dia 0.3140 7.98MM
Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Dimension Standard DIN/DIN
Overall Len 7.0866 180.00MM
Flutes/Inserts 3
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
