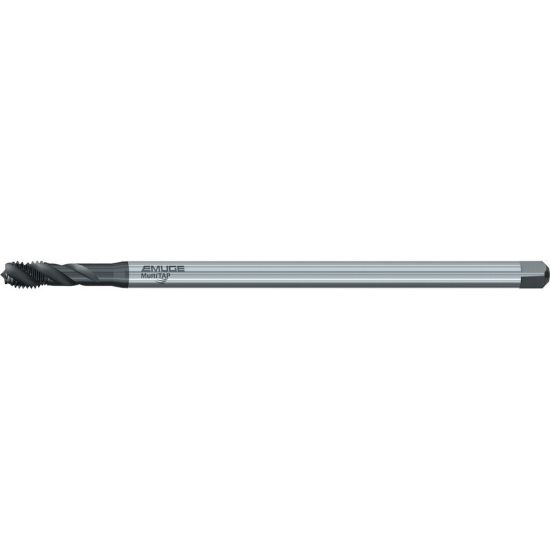

EMUGE B5863200.0060 Tap Mod Bottom M6-1.00MM 6H Metric DIN/DIN HSSE Oxide + TiN

ISO: B5863200.0060

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB5863200.0060
Delivery date: 3-5 days
$87.95

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Coating Oxide + TiN
Dimensional Specifications
Tool Material Steel
Thread Type Metric
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Dimension Standard DIN/DIN
Flutes/Inserts 3
Thread Limit 6H
Shank/Pilot Dia 0.2360 5.99MM
Overall Len 6.2992 160.00MM
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Flute Direction R - Right
Length Type Long
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Type Mod Bottom
Thread Size M6
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
