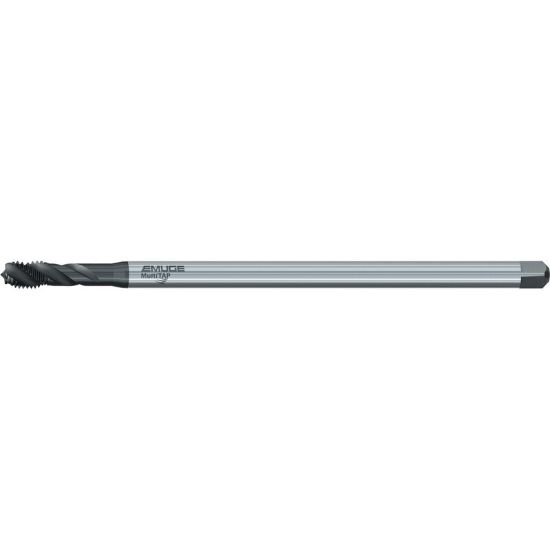

EMUGE B5863200.0050 Tap Mod Bottom M5-0.80MM 6H Metric DIN/DIN HSSE Oxide + TiN

ISO: B5863200.0050

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB5863200.0050
Delivery date: 3-5 days
$85.39

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Coating Oxide + TiN
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Size M5
Flute Direction R - Right
Length Type Long
Tool Material Steel
Thread Pitch 0.80MM
Thread Type Metric
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Overall Len 5.5118 140.00MM
Tap Square 0.1520
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Limit 6H
Shank/Pilot Dia 0.2360 5.99MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Dimension Standard DIN/DIN
Flutes/Inserts 3
Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
