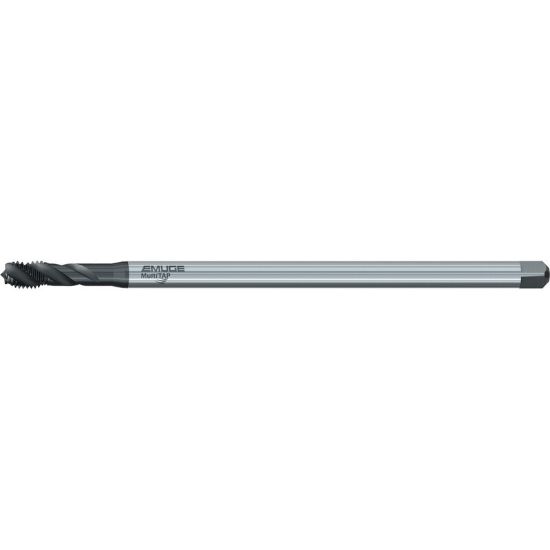

EMUGE B5863200.0040 Tap Mod Bottom M4-0.70MM 6H Metric DIN/DIN HSSE Oxide + TiN

ISO: B5863200.0040

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB5863200.0040
Delivery date: 3-5 days
$72.39

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE

Products specifications
Attribute name Attribute value
General Product Information
Coating Oxide + TiN
Application Mod Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Made In USA No
Dimensional Specifications
Thread Size M4
Thread Type Metric
Drill Range 0.1287 3.27MM - 0.1358 3.45MM
Tap Square 0.1520
Thread Pitch 0.70MM
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Overall Len 4.9213 125.00MM
Thread Limit 6H
Length Type Long
Tap Chamfer 2.0P-3.0P
Flute Direction R - Right
Shank/Pilot Dia 0.1770 4.50MM - #16
Dimension Standard DIN/DIN
Flutes/Inserts 3
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
