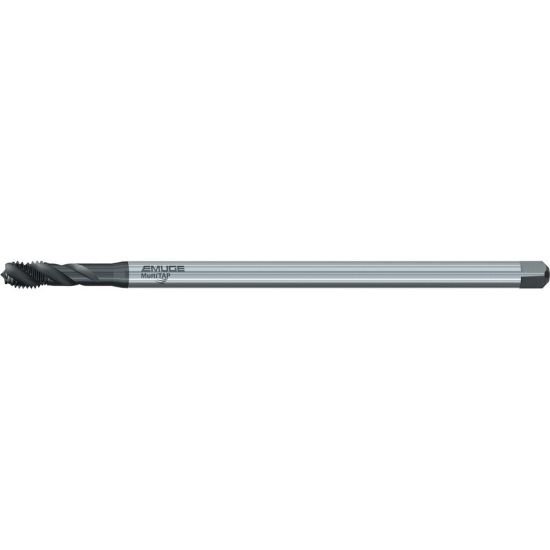

Picture of Emuge B5863200.0080 Tap Mod Bottom M8-1.25mm 6H Metric DIN/DIn HSSE Oxide + TiN Pulley Long

Emuge B5863200.0080 Tap Mod Bottom M8-1.25mm 6H Metric DIN/DIn HSSE Oxide + TiN Pulley Long

Part Number: EMUB5863200.0080 ISO: B5863200.0080
Looking for alternatives…
Find a drill for this tap M8 × 1.25MM
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1157686
Vendor: Sussex Tool and Supply
$158.92

Description

EMUGE B5863200.0080 M8x1.25MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Oxide + TiN 6H Metric Steel TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type LONG
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 7.0866 180.00MM
Shank/Pilot Dia 0.3140 7.98MM
Flutes/Inserts 3
Thread Pitch 1.25MM
Thread Size M8
Tap Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Tap Square 0.2380
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating Oxide + TiN
Standards & Identification
Dimension Standard DIN/DIN
