  • EMUGE B531Y700.0100 Tap M10-1.50MM Bottoming Metric DIN/DIN 1.5P-2.0P Coolant HSSE-Powder Metal DLC

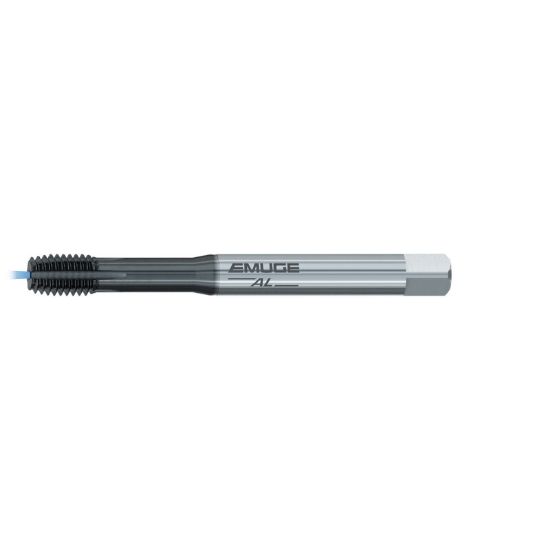

Picture of EMUGE B531Y700.0100 Tap M10-1.50MM Bottoming Metric DIN/DIN 1.5P-2.0P Coolant HSSE-Powder Metal DLC

EMUGE B531Y700.0100 Tap M10-1.50MM Bottoming Metric DIN/DIN 1.5P-2.0P Coolant HSSE-Powder Metal DLC

ISO: B531Y700.0100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB531Y700.0100
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Roll Form Tapping, Tapping, Blind Hole Tapping
Performance Rating High Performance
Made In USA No
Coating DLC
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.3930 9.98MM
Thread Size M10
Thread Type Metric
Length Type Standard
Tap Style Roll Form
Thread Limit 6H
Cut Rating Aluminum, Brass, Graphite, Plastic
Drill Range 0.3638 9.24MM - 0.3717 9.44MM
Tap Square 0.2860
Tap Chamfer 1.5P-2.0P
Thread Pitch 1.50MM
Tool Material Steel
Overall Len 3.9370 100.00MM
Tap Type Bottoming
Flute Direction STRAIGHT
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
