  • EMUGE B531Y700.0080 Tap M8-1.25MM Bottoming Metric DIN/DIN 1.5P-2.0P Coolant HSSE-Powder Metal DLC

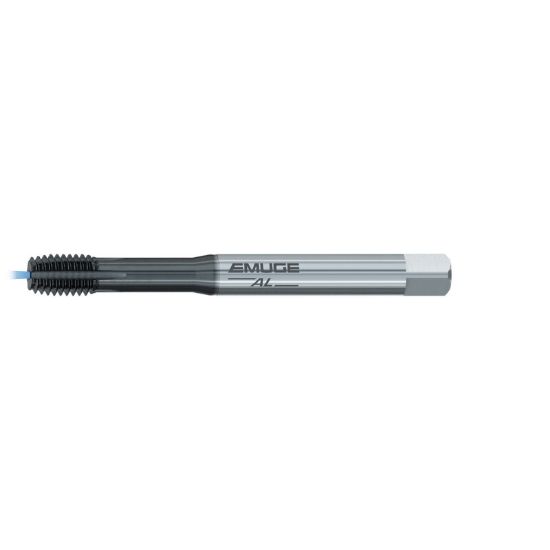

Picture of EMUGE B531Y700.0080 Tap M8-1.25MM Bottoming Metric DIN/DIN 1.5P-2.0P Coolant HSSE-Powder Metal DLC

EMUGE B531Y700.0080 Tap M8-1.25MM Bottoming Metric DIN/DIN 1.5P-2.0P Coolant HSSE-Powder Metal DLC

ISO: B531Y700.0080

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB531Y700.0080
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Coating DLC
Shipping State Massachusetts
Package Size 1
Application Roll Form Tapping, Bottom Tapping, Tapping, Blind Hole Tapping
Performance Rating High Performance
Dimensional Specifications
Drill Range 0.2898 7.36MM - 0.2965 7.53MM
Length Type Standard
Tap Type Bottoming
Thread Limit 6H
Cut Rating Aluminum, Brass, Graphite, Plastic
Overall Len 3.5433 90.00MM
Tap Style Roll Form
Tap Chamfer 1.5P-2.0P
Machine Side Connection Type Tap Collet
Dimension Standard DIN/DIN
Flute Direction STRAIGHT
Thread Size M8
Thread Type Metric
Thread Pitch 1.25MM
Tool Material Steel
Shank/Pilot Dia 0.3140 7.98MM
Tap Square 0.2440
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
