  • EMUGE B531Y700.0040 Tap M4-0.70MM Bottoming Metric DIN/DIN 1.5P-2.0P Coolant HSSE-Powder Metal DLC

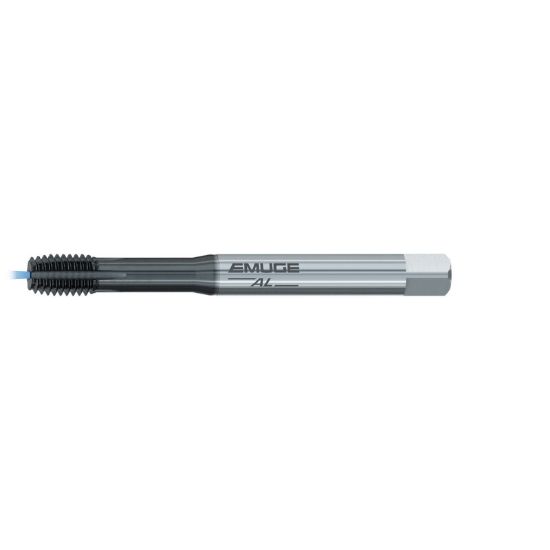

Picture of EMUGE B531Y700.0040 Tap M4-0.70MM Bottoming Metric DIN/DIN 1.5P-2.0P Coolant HSSE-Powder Metal DLC

EMUGE B531Y700.0040 Tap M4-0.70MM Bottoming Metric DIN/DIN 1.5P-2.0P Coolant HSSE-Powder Metal DLC

ISO: B531Y700.0040

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB531Y700.0040
Delivery date: 3-5 days
$128.73

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Coating DLC
Shipping State Massachusetts
Package Size 1
Application Blind Hole Tapping, Bottom Tapping, Roll Form Tapping, Tapping
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Limit 6H
Cut Rating Aluminum, Brass, Graphite, Plastic
Tap Chamfer 1.5P-2.0P
Thread Pitch 0.70MM
Thread Type Metric
Overall Len 2.4803 63.00MM
Flute Direction STRAIGHT
Tool Material Steel
Tap Type Bottoming
Shank/Pilot Dia 0.1770 4.50MM - #16
Tap Square 0.1920
Length Type Standard
Tap Style Roll Form
Dimension Standard DIN/DIN
Thread Size M4
Machine Side Connection Type Tap Collet
Drill Range 0.1433 3.64MM - 0.1472 3.74MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
