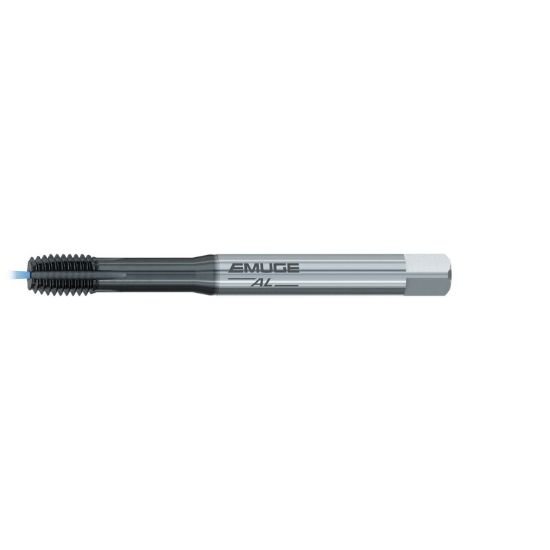

Picture of Emuge B531Y700.0040 Tap M4-0.70mm Bottoming Metric DIN/DIn 1.5P-2.0P Coolant HSSE-Powder Metal DLC

Emuge B531Y700.0040 Tap M4-0.70mm Bottoming Metric DIN/DIn 1.5P-2.0P Coolant HSSE-Powder Metal DLC

Part Number: EMUB531Y700.0040 ISO: B531Y700.0040
Looking for alternatives…
Find a drill for this tap M4 × 0.70MM
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1157213
Vendor: Sussex Tool and Supply
$151.41

Description

EMUGE B531Y700.0040 M4x0.70MM Roll Form Bottoming 1.5P-2.0P HSSE-PM DLC 6H Metric Steel DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction STRAIGHT
Tap Style Roll Form
Tap Type Bottoming
Tap Chamfer 1.5P-2.0P
Dimensions & Sizing
Overall Length 2.4803 63.00MM
Shank/Pilot Dia 0.1770 4.50MM - #16
Thread Pitch 0.70MM
Thread Size M4
Tap Drill Range 0.1433 3.64MM - 0.1472 3.74MM
Tap Square 0.1920
Performance & Capacity
Cut Rating Graphite, Aluminum, Brass, Plastic
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating DLC
Standards & Identification
Dimension Standard DIN/DIN
