  • EMUGE B523Z700.0050 Tap Mod Bottom M5-0.80MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

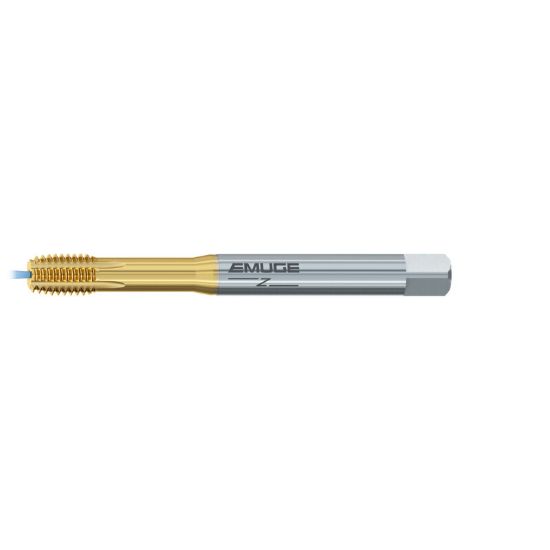

Picture of EMUGE B523Z700.0050 Tap Mod Bottom M5-0.80MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

EMUGE B523Z700.0050 Tap Mod Bottom M5-0.80MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

ISO: B523Z700.0050

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB523Z700.0050
Delivery date: 3-5 days
$120.49

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Roll Form Tapping, Tapping, Blind Hole Tapping, Mod Bottom Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Coating TiN
Made In USA No
Dimensional Specifications
Tool Material Steel
Drill Range 0.1807 4.59MM - 0.1850 4.70MM
Dimension Standard DIN/DIN
Thread Size M5
Thread Limit 6H
Shank/Pilot Dia 0.2360 5.99MM
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Type Metric
Thread Pitch 0.80MM
Flute Direction STRAIGHT
Overall Len 2.7560 70.00MM
Cut Rating <40HRC Steel, Stainless Steel
Tap Square 0.1920
Length Type Standard
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Job Shop Yes
