  • EMUGE B523Z700.0040 Tap Mod Bottom M4-0.70MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

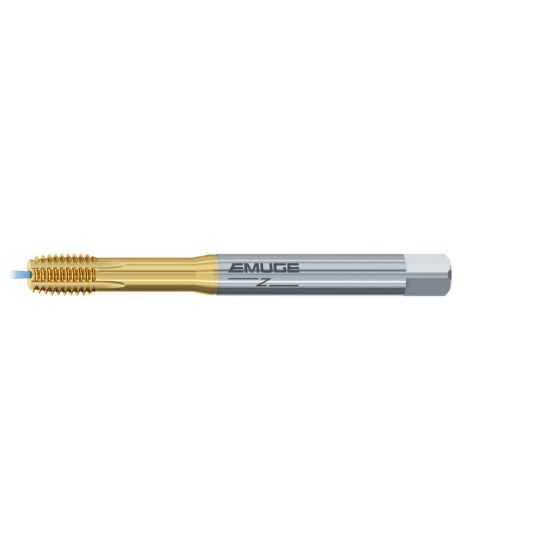

Picture of EMUGE B523Z700.0040 Tap Mod Bottom M4-0.70MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

EMUGE B523Z700.0040 Tap Mod Bottom M4-0.70MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

ISO: B523Z700.0040

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB523Z700.0040
Delivery date: 3-5 days
$121.77

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Roll Form Tapping, Blind Hole Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating TiN
Shipping State Massachusetts
Made In USA No
Package Size 1
Dimensional Specifications
Thread Pitch 0.70MM
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Size M4
Flute Direction STRAIGHT
Drill Range 0.1433 3.64MM - 0.1472 3.74MM
Tool Material Steel
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.1770 4.50MM - #16
Tap Square 0.1920
Length Type Standard
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Thread Type Metric
Overall Len 2.4803 63.00MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Job Shop Yes
