  • EMUGE B523W700.0050 Tap Mod Bottom M5-0.80MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

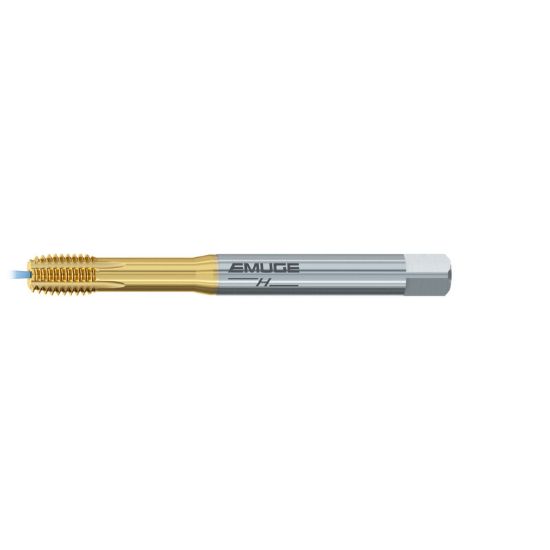

Picture of EMUGE B523W700.0050 Tap Mod Bottom M5-0.80MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

EMUGE B523W700.0050 Tap Mod Bottom M5-0.80MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

ISO: B523W700.0050

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB523W700.0050
Delivery date: 3-5 days
$118.42

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Blind Hole Tapping, Mod Bottom Tapping, Roll Form Tapping, Tapping
Coating TiN
Made In USA No
Performance Rating High Performance
Shipping State Massachusetts
Dimensional Specifications
Tap Square 0.1920
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Thread Pitch 0.80MM
Thread Type Metric
Flute Direction STRAIGHT
Overall Len 2.7560 70.00MM
Machine Side Connection Type Tap Collet
Tool Material Steel
Drill Range 0.1807 4.59MM - 0.1850 4.70MM
Length Type Standard
Dimension Standard DIN/DIN
Thread Size M5
Thread Limit 6H
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Shank/Pilot Dia 0.2360 5.99MM
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
Energy Yes
