  • EMUGE B523Q200.0100 Tap Mod Bottom M10-1.50MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiCN

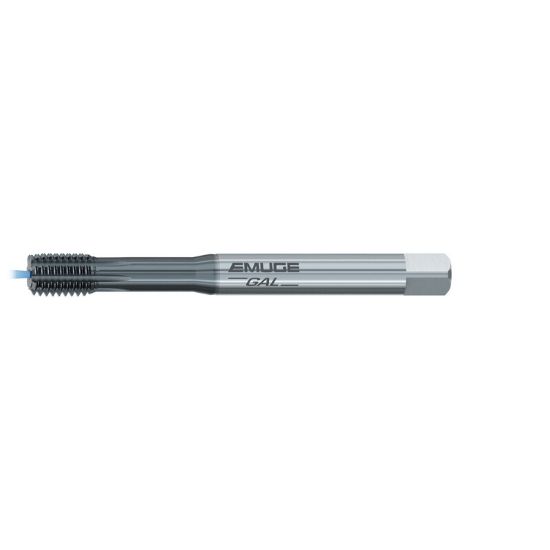

Picture of EMUGE B523Q200.0100 Tap Mod Bottom M10-1.50MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiCN

EMUGE B523Q200.0100 Tap Mod Bottom M10-1.50MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiCN

ISO: B523Q200.0100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB523Q200.0100
Delivery date: 3-5 days
$206.39

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Blind Hole Tapping, Mod Bottom Tapping, Roll Form Tapping, Tapping
Coating TiCN
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Tool Material Steel
Thread Pitch 1.50MM
Overall Len 3.9370 100.00MM
Length Type Standard
Tap Style Roll Form
Thread Size M10
Thread Type Metric
Flute Direction STRAIGHT
Thread Limit 6H
Cut Rating Aluminum, Brass, Graphite, Plastic
Drill Range 0.3638 9.24MM - 0.3717 9.44MM
Tap Square 0.2860
Tap Chamfer 2.0P-3.0P
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.3930 9.98MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Job Shop Yes
Automotive Yes
Agricultural YES
