  • EMUGE B5236F00.0040 Tap Mod Bottom M4-0.70MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiCN

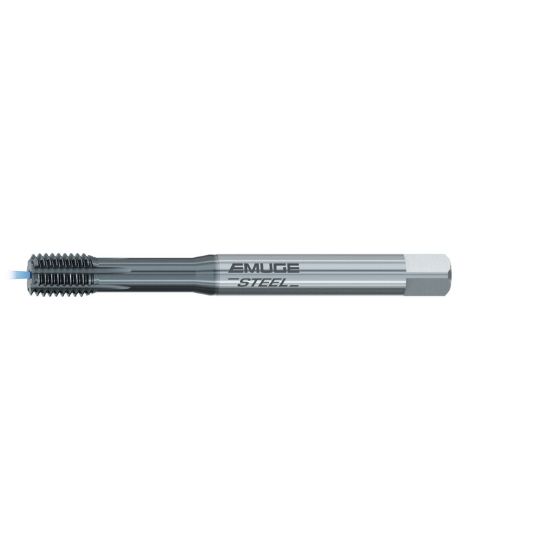

Picture of EMUGE B5236F00.0040 Tap Mod Bottom M4-0.70MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiCN

EMUGE B5236F00.0040 Tap Mod Bottom M4-0.70MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiCN

ISO: B5236F00.0040

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB5236F00.0040
Delivery date: 3-5 days
$142.04

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Roll Form Tapping, Blind Hole Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating TiCN
Shipping State Massachusetts
Made In USA No
Package Size 1
Dimensional Specifications
Thread Pitch 0.70MM
Thread Type Metric
Dimension Standard DIN/DIN
Tool Material Steel
Thread Size M4
Machine Side Connection Type Tap Collet
Drill Range 0.1433 3.64MM - 0.1472 3.74MM
Thread Limit 6H
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Tap Type Mod Bottom
Length Type Standard
Shank/Pilot Dia 0.1770 4.50MM - #16
Tap Square 0.1920
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Flute Direction STRAIGHT
Overall Len 2.4803 63.00MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
Energy Yes
