  • EMUGE B521Z700.0276 Tap Mod Bottom M10-1.00MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

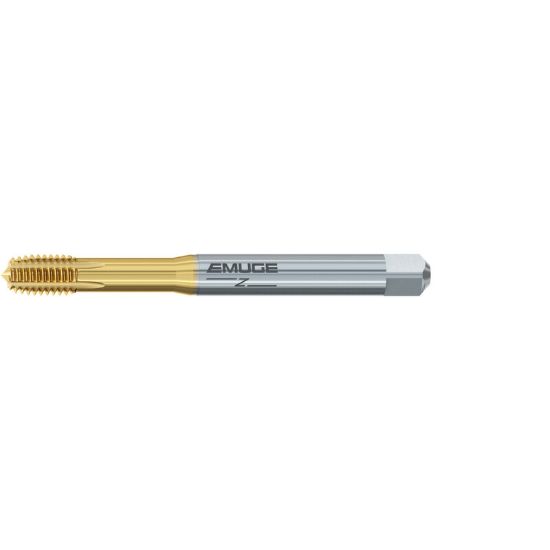

Picture of EMUGE B521Z700.0276 Tap Mod Bottom M10-1.00MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

EMUGE B521Z700.0276 Tap Mod Bottom M10-1.00MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

ISO: B521Z700.0276

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB521Z700.0276
Delivery date: 3-5 days
$161.11

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Shipping State Massachusetts
Package Size 1
Made In USA No
Application Roll Form Tapping, Tapping, Blind Hole Tapping, Mod Bottom Tapping
Performance Rating High Performance
Dimensional Specifications
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Limit 6H
Overall Len 3.5433 90.00MM
Tap Chamfer 2.0P-3.0P
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Tap Style Roll Form
Thread Size M10
Thread Type Metric
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.3930 9.98MM
Tool Material Steel
Flute Direction STRAIGHT
Drill Range 0.3736 9.49MM - 0.3791 9.63MM
Tap Square 0.3140
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
