  • EMUGE B521Z700.0100 Tap Mod Bottom M10-1.50MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

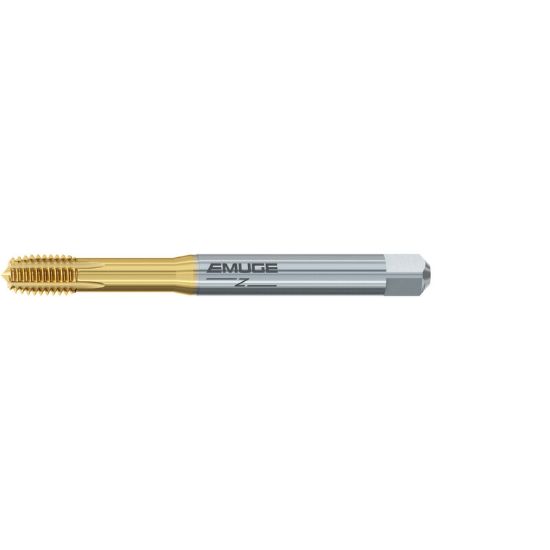

Picture of EMUGE B521Z700.0100 Tap Mod Bottom M10-1.50MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

EMUGE B521Z700.0100 Tap Mod Bottom M10-1.50MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

ISO: B521Z700.0100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB521Z700.0100
Delivery date: 3-5 days
$160.03

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Roll Form Tapping, Blind Hole Tapping, Mod Bottom Tapping, Tapping
Package Size 1
Made In USA No
Performance Rating High Performance
Coating TiN
Shipping State Massachusetts
Dimensional Specifications
Dimension Standard DIN/DIN
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Overall Len 3.9370 100.00MM
Length Type Standard
Thread Type Metric
Thread Size M10
Shank/Pilot Dia 0.3930 9.98MM
Flute Direction STRAIGHT
Machine Side Connection Type Tap Collet
Drill Range 0.3638 9.24MM - 0.3717 9.44MM
Tap Square 0.2860
Tap Type Mod Bottom
Thread Pitch 1.50MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Job Shop Yes
