  • EMUGE B521Z700.0080 Tap Mod Bottom M8-1.25MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

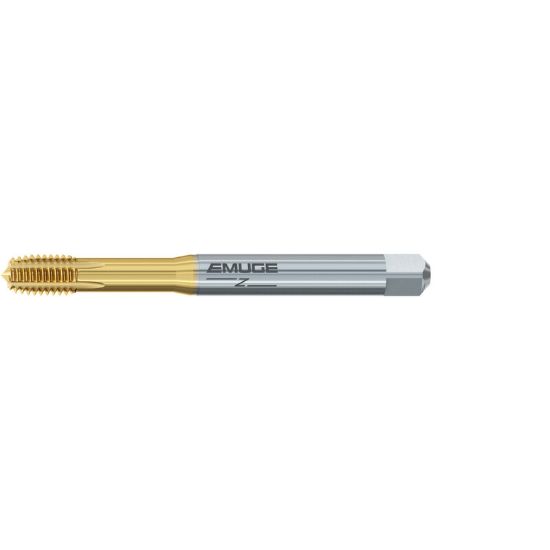

Picture of EMUGE B521Z700.0080 Tap Mod Bottom M8-1.25MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

EMUGE B521Z700.0080 Tap Mod Bottom M8-1.25MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

ISO: B521Z700.0080

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB521Z700.0080
Delivery date: 3-5 days
$123.25

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Mod Bottom Tapping, Tapping, Roll Form Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Made In USA No
Coating TiN
Dimensional Specifications
Thread Size M8
Thread Type Metric
Flute Direction STRAIGHT
Dimension Standard DIN/DIN
Thread Limit 6H
Overall Len 3.5433 90.00MM
Tap Type Mod Bottom
Cut Rating <40HRC Steel, Stainless Steel
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Thread Pitch 1.25MM
Tool Material Steel
Shank/Pilot Dia 0.3140 7.98MM
Tap Square 0.2440
Drill Range 0.2898 7.36MM - 0.2965 7.53MM
Length Type Standard
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
