  • EMUGE B521Z700.0060 Tap Mod Bottom M6-1.00MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

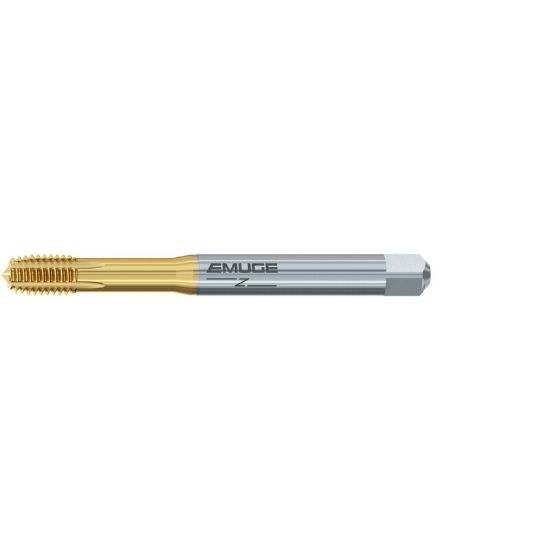

Picture of EMUGE B521Z700.0060 Tap Mod Bottom M6-1.00MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

EMUGE B521Z700.0060 Tap Mod Bottom M6-1.00MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

ISO: B521Z700.0060

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB521Z700.0060
Delivery date: 3-5 days
$109.42

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Made In USA No
Application Blind Hole Tapping, Mod Bottom Tapping, Roll Form Tapping, Tapping
Performance Rating High Performance
Coating TiN
Dimensional Specifications
Thread Limit 6H
Shank/Pilot Dia 0.2360 5.99MM
Tap Square 0.1910
Tap Chamfer 2.0P-3.0P
Cut Rating <40HRC Steel, Stainless Steel
Drill Range 0.2161 5.49MM - 0.2217 5.63MM
Length Type Standard
Tap Style Roll Form
Tool Material Steel
Flute Direction STRAIGHT
Overall Len 3.1496 80.00MM
Thread Type Metric
Thread Size M6
Dimension Standard DIN/DIN
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
