  • EMUGE B521Z700.0040 Tap Mod Bottom M4-0.70MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

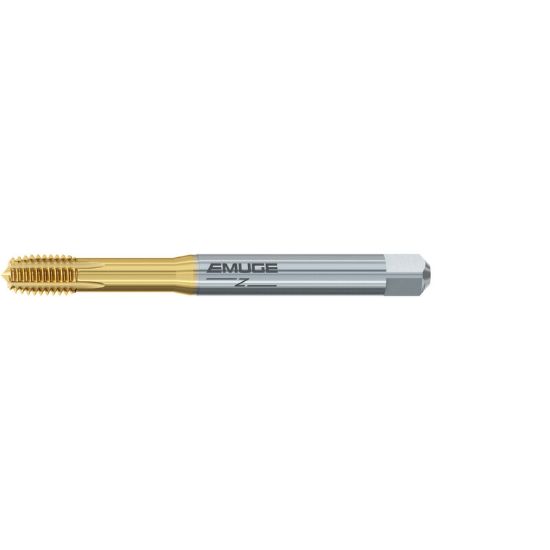

Picture of EMUGE B521Z700.0040 Tap Mod Bottom M4-0.70MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

EMUGE B521Z700.0040 Tap Mod Bottom M4-0.70MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

ISO: B521Z700.0040

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB521Z700.0040
Delivery date: 3-5 days
$85.45

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Blind Hole Tapping, Mod Bottom Tapping, Roll Form Tapping
Performance Rating High Performance
Made In USA No
Coating TiN
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Pitch 0.70MM
Shank/Pilot Dia 0.1770 4.50MM - #16
Tap Square 0.1920
Length Type Standard
Tool Material Steel
Thread Size M4
Flute Direction STRAIGHT
Drill Range 0.1433 3.64MM - 0.1472 3.74MM
Thread Type Metric
Overall Len 2.4803 63.00MM
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Dimension Standard DIN/DIN
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
