  • EMUGE B521Z700.0030 Tap M3-0.50MM Mod Bottom Metric DIN/DIN 2.0P-3.0P HSSE-Powder Metal TiN

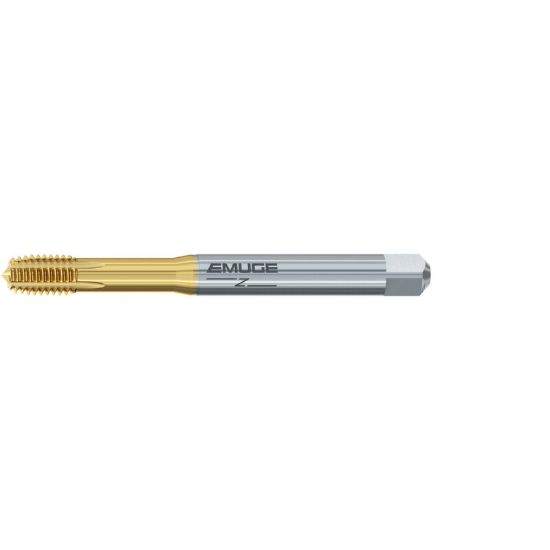

Picture of EMUGE B521Z700.0030 Tap M3-0.50MM Mod Bottom Metric DIN/DIN 2.0P-3.0P HSSE-Powder Metal TiN

EMUGE B521Z700.0030 Tap M3-0.50MM Mod Bottom Metric DIN/DIN 2.0P-3.0P HSSE-Powder Metal TiN

ISO: B521Z700.0030

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB521Z700.0030
Delivery date: 3-5 days
$83.27

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Blind Hole Tapping, Mod Bottom Tapping, Tapping, Roll Form Tapping
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Massachusetts
Dimensional Specifications
Thread Pitch 0.50MM
Machine Side Connection Type Tap Collet
Tap Square 0.1060
Thread Type Metric
Flute Direction STRAIGHT
Thread Size M3
Shank/Pilot Dia 0.1370 3.48MM
Cut Rating <40HRC Steel, Stainless Steel
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Length Type Standard
Dimension Standard DIN/DIN
Overall Len 2.2047 56.00MM
Tool Material Steel
Thread Limit 6H
Drill Range 0.0976 2.48MM - 0.1028 2.61MM
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Job Shop Yes
