  • EMUGE B521Z700.0025 Tap M2.5-0.45MM Mod Bottom Metric DIN/DIN 2.0P-3.0P HSSE-Powder Metal TiN

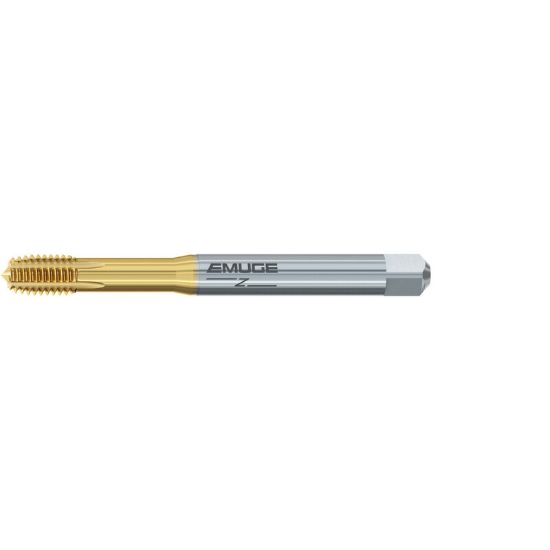

Picture of EMUGE B521Z700.0025 Tap M2.5-0.45MM Mod Bottom Metric DIN/DIN 2.0P-3.0P HSSE-Powder Metal TiN

EMUGE B521Z700.0025 Tap M2.5-0.45MM Mod Bottom Metric DIN/DIN 2.0P-3.0P HSSE-Powder Metal TiN

ISO: B521Z700.0025

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB521Z700.0025
Delivery date: 3-5 days
$94.50

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Coating TiN
Application Blind Hole Tapping, Mod Bottom Tapping, Roll Form Tapping, Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Pitch 0.45MM
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Tap Style Roll Form
Tool Material Steel
Thread Size M2.5
Machine Side Connection Type Tap Collet
Tap Square 0.0820
Tap Type Mod Bottom
Overall Len 1.9685 50.00MM
Dimension Standard DIN/DIN
Thread Type Metric
Drill Range 0.0894 2.27MM - 0.0917 2.33MM
Thread Limit 6H
Shank/Pilot Dia 0.1102 2.80MM
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Job Shop Yes
