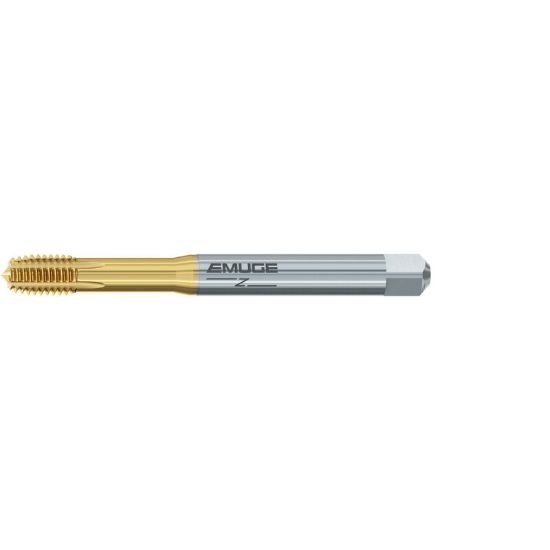

Picture of Emuge B521Z700.0020 Tap M2-0.40mm Mod Bottom Metric DIN/DIn 2.0P-3.0P HSSE-Powder Metal TiN

Emuge B521Z700.0020 Tap M2-0.40mm Mod Bottom Metric DIN/DIn 2.0P-3.0P HSSE-Powder Metal TiN

Part Number: EMUB521Z700.0020 ISO: B521Z700.0020
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1156887

Description

EMUGE B521Z700.0020 M2x0.40MM Roll Form Mod Bottom 2.0P-3.0P HSSE-PM TiN 6H Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Tap Style Roll Form
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 1.7717 45.00MM
Shank/Pilot Dia 0.1102 2.80MM
Thread Pitch 0.40MM
Thread Size M2
Tap Drill Range 0.0709 1.80MM - 0.0728 1.85MM
Tap Square 0.0820
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating TIN
Standards & Identification
Dimension Standard DIN/DIN
