  • EMUGE B521W700.0100 Tap Mod Bottom M10-1.50MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

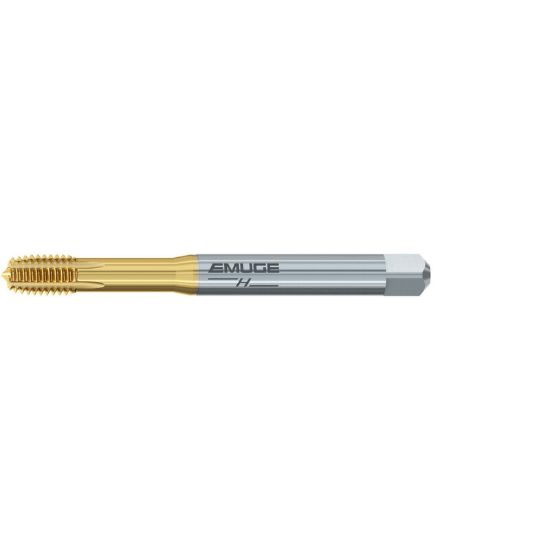

Picture of EMUGE B521W700.0100 Tap Mod Bottom M10-1.50MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

EMUGE B521W700.0100 Tap Mod Bottom M10-1.50MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

ISO: B521W700.0100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB521W700.0100
Delivery date: 3-5 days
$166.93

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Shipping State Massachusetts
Application Roll Form Tapping, Tapping, Blind Hole Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating TiN
Dimensional Specifications
Overall Len 3.9370 100.00MM
Length Type Standard
Thread Limit 6H
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Machine Side Connection Type Tap Collet
Drill Range 0.3638 9.24MM - 0.3717 9.44MM
Tap Square 0.2860
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.3930 9.98MM
Thread Size M10
Flute Direction STRAIGHT
Thread Type Metric
Thread Pitch 1.50MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Energy Yes
Job Shop Yes
Mold Yes
