  • EMUGE B521W700.0080 Tap Mod Bottom M8-1.25MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

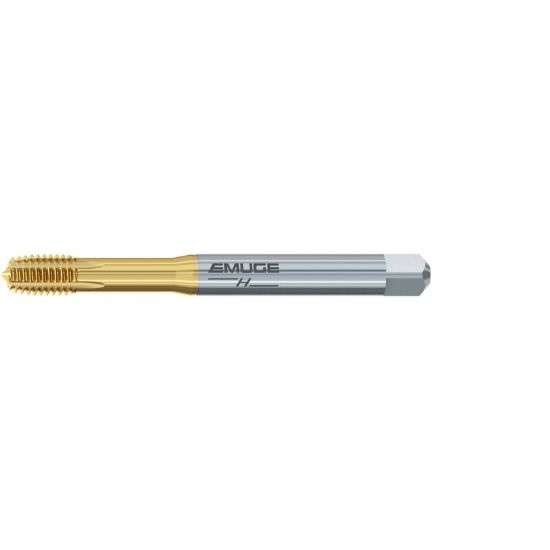

Picture of EMUGE B521W700.0080 Tap Mod Bottom M8-1.25MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

EMUGE B521W700.0080 Tap Mod Bottom M8-1.25MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

ISO: B521W700.0080

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB521W700.0080
Delivery date: 3-5 days
$127.46

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Roll Form Tapping, Tapping, Blind Hole Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Package Size 1
Coating TiN
Shipping State Massachusetts
Dimensional Specifications
Dimension Standard DIN/DIN
Thread Type Metric
Thread Size M8
Flute Direction STRAIGHT
Drill Range 0.2898 7.36MM - 0.2965 7.53MM
Length Type Standard
Tap Style Roll Form
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Limit 6H
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Overall Len 3.5433 90.00MM
Tap Chamfer 2.0P-3.0P
Thread Pitch 1.25MM
Tool Material Steel
Shank/Pilot Dia 0.3140 7.98MM
Tap Square 0.2440
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Energy Yes
Job Shop Yes
Mold Yes
