  • EMUGE B521W700.0050 Tap Mod Bottom M5-0.80MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

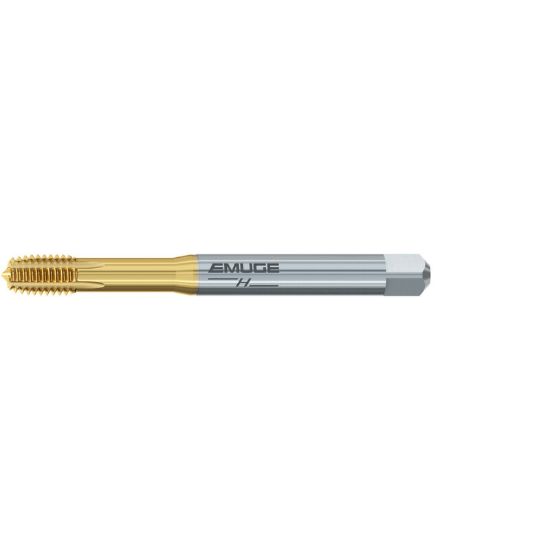

Picture of EMUGE B521W700.0050 Tap Mod Bottom M5-0.80MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

EMUGE B521W700.0050 Tap Mod Bottom M5-0.80MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

ISO: B521W700.0050

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB521W700.0050
Delivery date: 3-5 days
$93.08

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Application Blind Hole Tapping, Mod Bottom Tapping, Roll Form Tapping, Tapping
Made In USA No
Performance Rating High Performance
Coating TiN
Dimensional Specifications
Thread Limit 6H
Shank/Pilot Dia 0.2360 5.99MM
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Thread Type Metric
Thread Pitch 0.80MM
Flute Direction STRAIGHT
Overall Len 2.7560 70.00MM
Tool Material Steel
Drill Range 0.1807 4.59MM - 0.1850 4.70MM
Tap Square 0.1920
Length Type Standard
Dimension Standard DIN/DIN
Thread Size M5
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Mold Yes
Energy Yes
