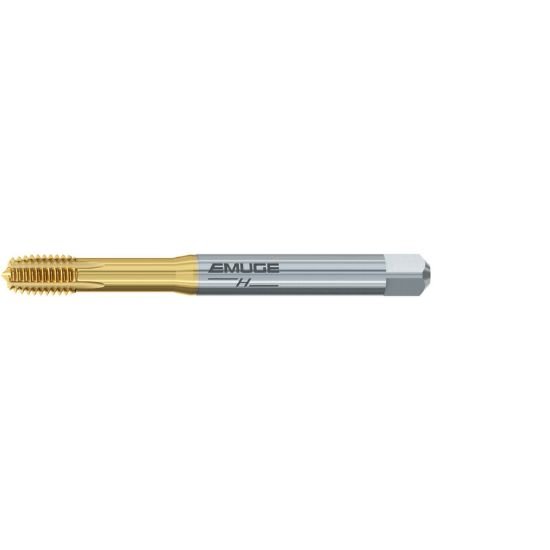

Picture of Emuge B521W700.0080 Tap Mod Bottom M8-1.25mm 6H Metric DIN/DIn HSSE-Powder Metal TiN

Emuge B521W700.0080 Tap Mod Bottom M8-1.25mm 6H Metric DIN/DIn HSSE-Powder Metal TiN

Part Number: EMUB521W700.0080 ISO: B521W700.0080
Looking for alternatives…
Find a drill for this tap M8 × 1.25MM
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1156881
Vendor: Sussex Tool and Supply
$149.92

Description

EMUGE B521W700.0080 M8x1.25MM Roll Form Mod Bottom 2.0P-3.0P HSSE-PM TiN 6H Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction STRAIGHT
Tap Style Roll Form
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 3.5433 90.00MM
Shank/Pilot Dia 0.3140 7.98MM
Thread Pitch 1.25MM
Thread Size M8
Tap Drill Range 0.2898 7.36MM - 0.2965 7.53MM
Tap Square 0.2440
Performance & Capacity
Cut Rating <48HRC Steel, Aluminum, Gray Iron, Ductile Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating TIN
Standards & Identification
Dimension Standard DIN/DIN
