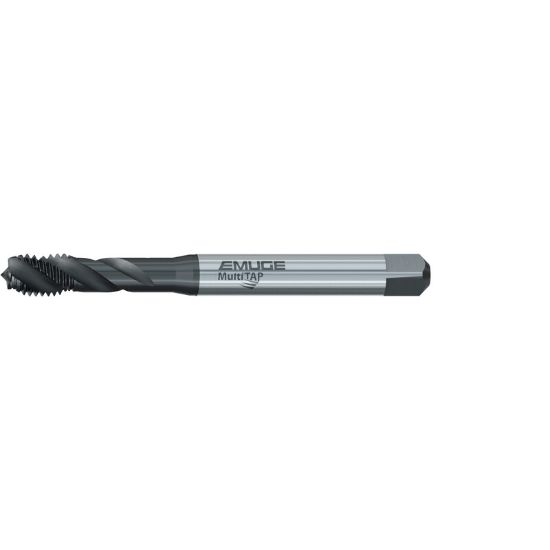

EMUGE B4933200.0080 Tap Mod Bottom M8-1.25MM 6H Metric DIN/DIN HSSE Oxide + TiN

ISO: B4933200.0080

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB4933200.0080
Delivery date: 3-5 days
$28.15

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Coating Oxide + TiN
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Dimension Standard DIN/DIN
Flute Direction R - Right
Length Type Standard
Tool Material Steel
Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Tap Square 0.2380
Thread Size M8
Thread Type Metric
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Limit 6H
Overall Len 3.5433 90.00MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Pitch 1.25MM
Shank/Pilot Dia 0.3140 7.98MM
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
