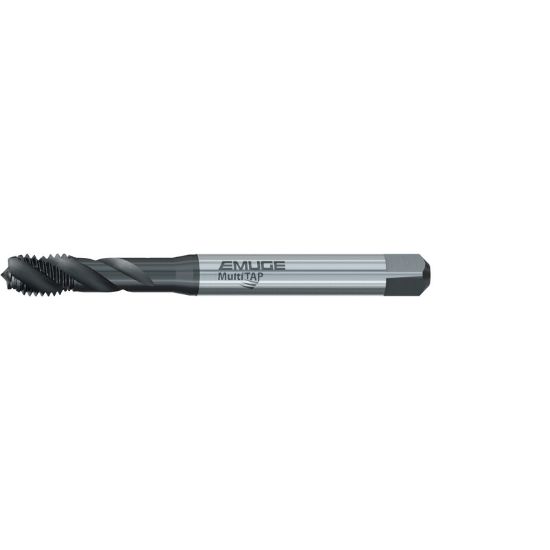

EMUGE B4933200.0040 Tap Mod Bottom M4-0.70MM 6H Metric DIN/DIN HSSE Oxide + TiN

ISO: B4933200.0040

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB4933200.0040
Delivery date: 3-5 days
$21.31

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Made In USA No
Shipping State Massachusetts
Package Size 1
Coating Oxide + TiN
Performance Rating High Performance
Dimensional Specifications
Tool Material Steel
Overall Len 2.4803 63.00MM
Drill Range 0.1287 3.27MM - 0.1358 3.45MM
Tap Square 0.1520
Thread Pitch 0.70MM
Thread Type Metric
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Shank/Pilot Dia 0.1770 4.50MM - #16
Flute Direction R - Right
Length Type Standard
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Size M4
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
