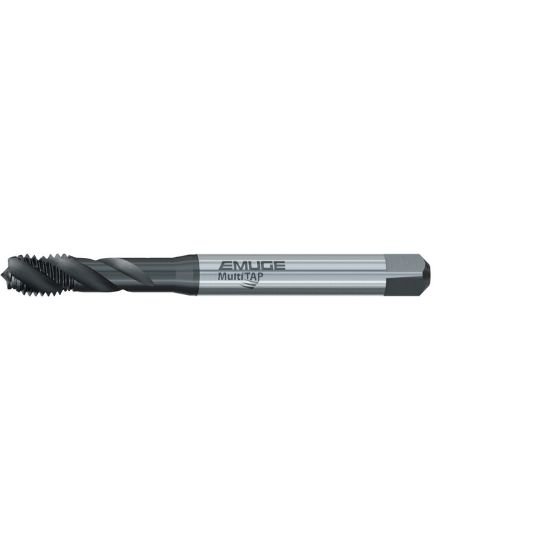

Picture of Emuge B4933200.0080 Tap Mod Bottom M8-1.25mm 6H Metric DIN/DIn HSSE Oxide + TiN

Emuge B4933200.0080 Tap Mod Bottom M8-1.25mm 6H Metric DIN/DIn HSSE Oxide + TiN

Part Number: EMUB4933200.0080 ISO: B4933200.0080

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157453
Vendor: Sussex Tool and Supply
$28.66
EMUGE B4933200.0080 M8x1.25MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Oxide + TiN 6H Metric Steel TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Coating Oxide + TiN
Overall Length 3.5433 90.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3140 7.98MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.25MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M8
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tap Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Tap Square 0.2380
Tap Chamfer 2.0P-3.0P
