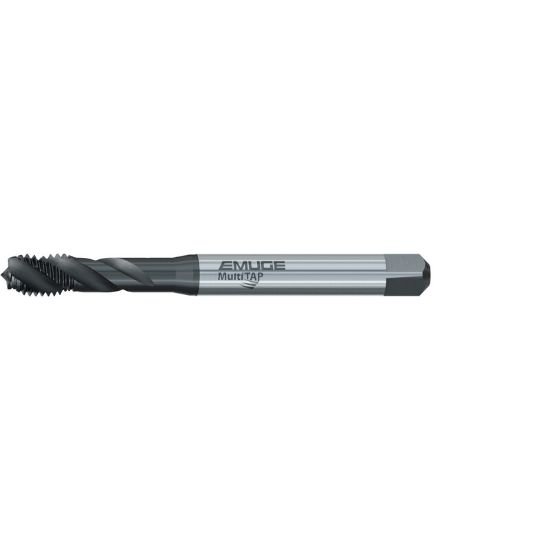

Picture of Emuge B4933200.0050 Tap Mod Bottom M5-0.80mm 6H Metric DIN/DIn HSSE Oxide + TiN

Emuge B4933200.0050 Tap Mod Bottom M5-0.80mm 6H Metric DIN/DIn HSSE Oxide + TiN

Part Number: EMUB4933200.0050 ISO: B4933200.0050

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157451
Vendor: Sussex Tool and Supply
$21.70
EMUGE B4933200.0050 M5x0.80MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Oxide + TiN 6H Metric Steel TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Coating Oxide + TiN
Overall Length 2.7560 70.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2360 5.99MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 0.80MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M5
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tap Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Tap Square 0.1520
Tap Chamfer 2.0P-3.0P
