  • EMUGE B3650F01.0060 Tap Mod Bottom M6-1.00MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

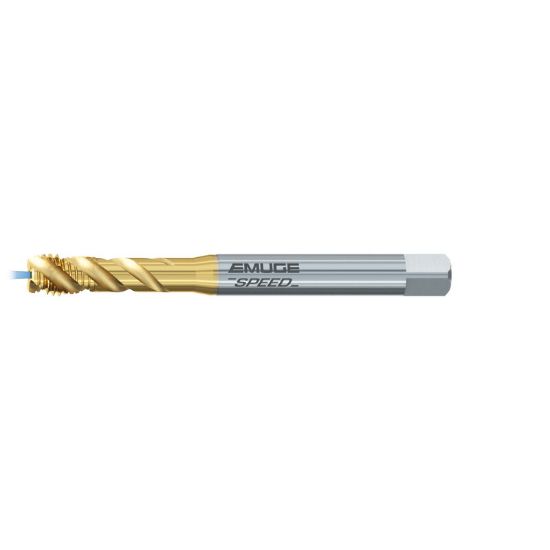

Picture of EMUGE B3650F01.0060 Tap Mod Bottom M6-1.00MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

EMUGE B3650F01.0060 Tap Mod Bottom M6-1.00MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

ISO: B3650F01.0060

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB3650F01.0060
Delivery date: 3-5 days
$91.68

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Massachusetts
Package Size 1
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating TiN
Dimensional Specifications
Tool Material Steel
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Thread Limit 6H
Shank/Pilot Dia 0.2360 5.99MM
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Type Metric
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Type Mod Bottom
Overall Len 3.1496 80.00MM
Thread Size M6
Dimension Standard DIN/DIN
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
