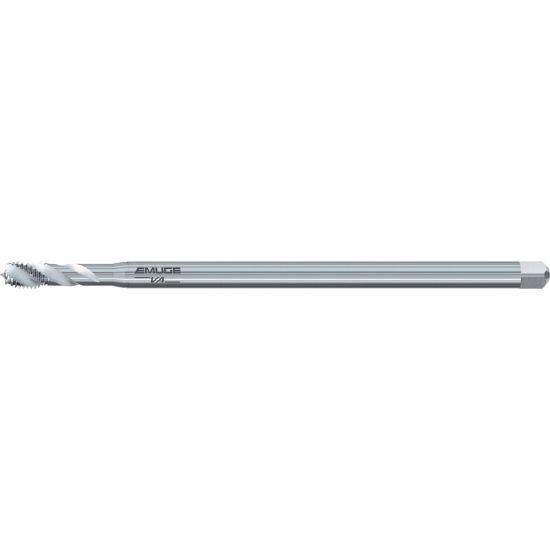

EMUGE B2503000.0060 Tap Mod Bottom M6-1.00MM 6H Metric DIN/DIN HSSE

ISO: B2503000.0060

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB2503000.0060
Delivery date: 3-5 days
$90.13

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Application Tapping, Mod Bottom Tapping, Cut Tapping
Performance Rating High Performance
Made In USA No
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.2360 5.99MM
Overall Len 6.2992 160.00MM
Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Type Metric
Flute Direction R - Right
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Length Type Long
Tap Chamfer 2.0P-3.0P
Tool Material Steel
Thread Size M6
Dimension Standard DIN/DIN
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
